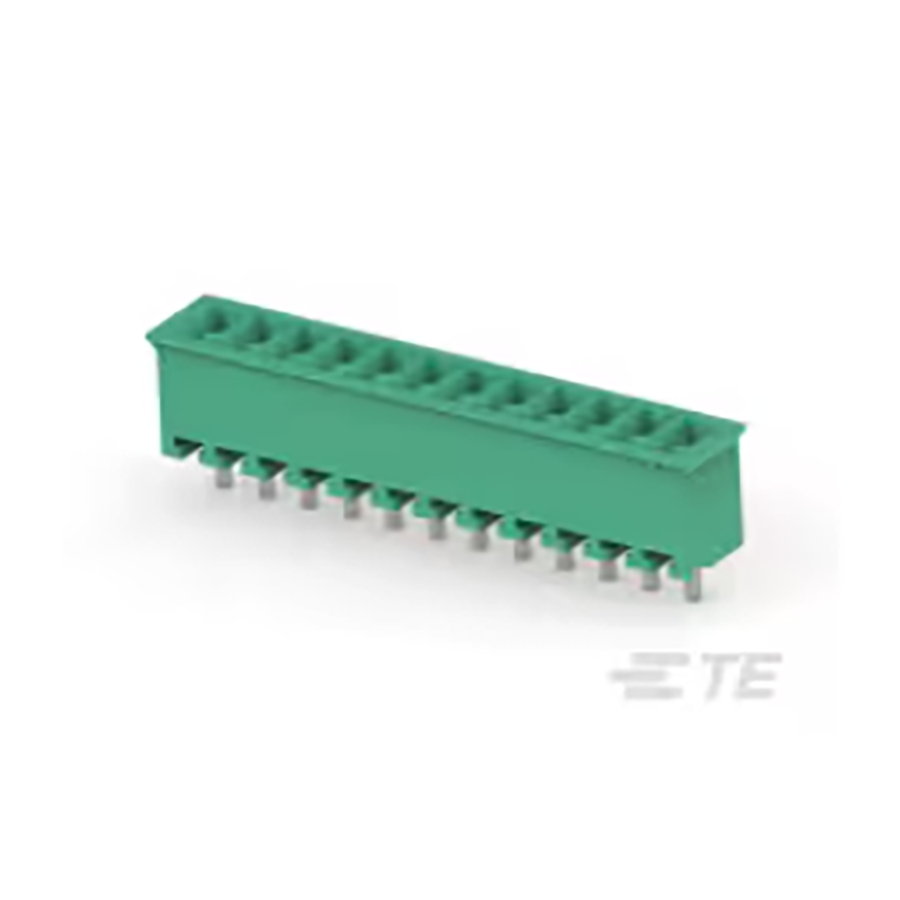

1-284514-2
Manufacturer:
TE Connectivity
Mfr.Part #:
1-284514-2
Datasheet:
Description:
Terminal Blocks Through Hole 12 3.5 mm 11 A 300 V
| Parameter | Value |
|---|---|
| Length | 44 mm |
| Termination | Solder |
| Max Operating Temperature | 110 °C |
| Min Operating Temperature | -40 °C |
| Voltage Rating (AC) | 300 V |
| Packaging | Bulk |
| Voltage Rating | 300 V |
| Depth | 7.2 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Voltage | 300 V |
| Contact Plating | Tin |
| Contact Material(Contact Finish) | Bronze |
| Pitch | 3.5 mm |
| Current | 11 A |
| Current Rating | 11 A |
| Max Current Rating | 11 A |
| Flammability Rating | UL94 V-0 |
| Orientation | Vertical |
| Lifecycle Status | Production (Last Updated: 1 week ago) |
| Color | Green |
| Number of Contacts | 12 |
| ELV | Compliant |
| Connector Type | Header |
| Number of Positions | 12 |
| Number of Rows | 1 |
| Housing Material | Polyamide |
| Number of Positions Per Level | 12 |
| Number of Levels | 1 |
| Connector System | Wire-to-Board |
| Max Voltage Rating (AC) | 300 V |
| Housing Color | Green |
| shrouded | Yes |
| Tail Length | 3.4 mm |
| Schedule B | 8536694040 |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 1 week ago) |
| Connection Method | Plug |
Stock: 1672
Distributors
pcbx
pcbxUnit Price$1.55854
Ext.Price$1.55854
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $1.55854 | $1.55854 |
| 10 | $1.51150 | $15.11500 |
| 25 | $1.46588 | $36.64700 |
| 50 | $1.42164 | $71.08200 |
| 100 | $1.37873 | $137.87300 |
| 300 | $1.33712 | $401.13600 |
| 500 | $1.29676 | $648.38000 |
| 1000 | $1.25760 | $1257.60000 |
